Overview

Important

See UI legal notices for Zoom legal notices and how to display them in your app.

Enable the custom meeting UI

To use your custom meeting UI, enable it before you start or join a meeting.

[[MobileRTC sharedRTC] getMeetingSettings].enableCustomMeeting = YES

Once the custom meeting UI feature is enabled, then starting or joining a meeting is the same:

Start a meeting

{
#if 0
    //customize meeting title
    [ms customizeMeetingTitle:@"Sample Meeting Title"];
#endif
}
//Start a meeting
MobileRTCMeetingStartParam * param = nil;
// Check whether the user is logged in
if ([[[MobileRTC sharedRTC] getAuthService] isLoggedIn]) {
    MobileRTCMeetingStartParam4LoginlUser * user = [[[MobileRTCMeetingStartParam4LoginlUser alloc]init]autorelease];
    param = user;
    param.meetingNumber = kSDKMeetNumber; // if kSDKMeetNumber is empty, it's a instant meeting.
    param.isAppShare = appShare;
}
else
{
    //Sample: How to Get Token or ZAK via RestAPI
    NSString * token = [self requestTokenOrZAKWithType:MobileRTCSampleTokenType_Token];
    NSString * ZAK = [self requestTokenOrZAKWithType:MobileRTCSampleTokenType_ZAK];
    MobileRTCMeetingStartParam4WithoutLoginUser * user = [[[MobileRTCMeetingStartParam4WithoutLoginUser alloc]init] autorelease];
    user.userType = MobileRTCUserType_APIUser;
    user.meetingNumber = kSDKMeetNumber;
    user.userName = kSDKUserName;
    user.userToken = token;
    user.userID = kSDKUserID;
    user.isAppShare = appShare;
    user.zak = ZAK;
    param = user;
}
MobileRTCMeetError ret = [ms startMeetingWithStartParam:param];
return;

Join a meeting

MobileRTCMeetingService *ms = [[MobileRTC sharedRTC] getMeetingService];
if (ms)
{
#if 0
    //customize meeting title
    [ms customizeMeetingTitle:@"Sample Meeting Title"];
#endif
    ms.delegate = self;
    //For Join a meeting with password
    NSDictionary *paramDict = @{
                                kMeetingParam_Username:kSDKUserName,
                                kMeetingParam_MeetingNumber:meetingNo,
                                kMeetingParam_MeetingPassword:pwd,
                                //kMeetingParam_ParticipantID:kParticipantID,
                                //kMeetingParam_WebinarToken:kWebinarToken,
                                //kMeetingParam_NoAudio:@(YES),
                                //kMeetingParam_NoVideo:@(YES),
                                };
//        //For Join a meeting
//        NSDictionary *paramDict = @{
//                                    kMeetingParam_Username:kSDKUserName,
//                                    kMeetingParam_MeetingNumber:meetingNo,
//                                    kMeetingParam_MeetingPassword:pwd,
//                                    };
    MobileRTCMeetError ret = [ms joinMeetingWithDictionary:paramDict];
    NSLog(@"onJoinaMeeting ret:%d", ret);
}

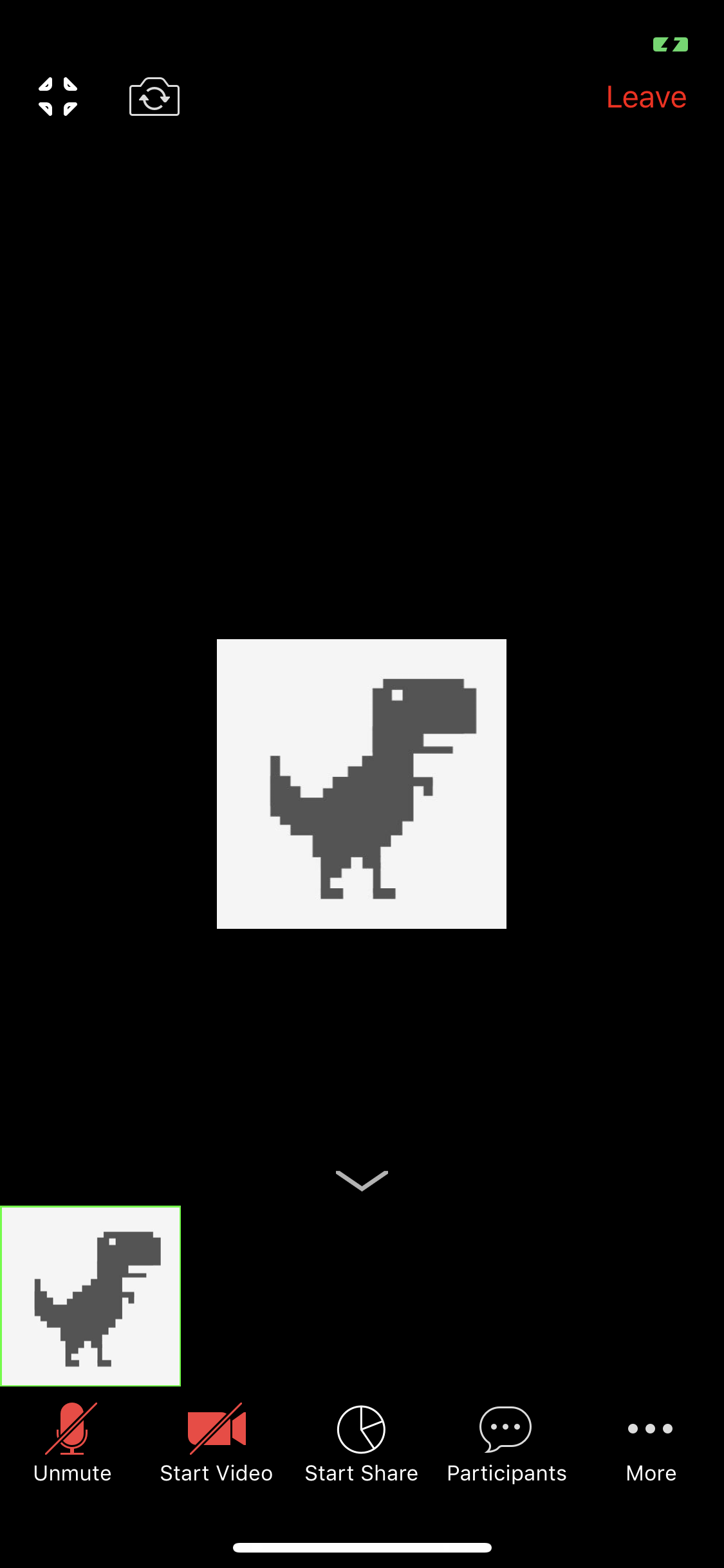

Create a custom meeting UI

Assign customized UI meeting delegate

To implement a custom meeting UI, firstly assign MobileRTCCustomizedUIMeetingDelegate to your StartJoinMeetingPresenter (Meeting View).

#import "SDKStartJoinMeetingPresenter.h"
@interface SDKStartJoinMeetingPresenter (CustomizedUIMeetingDelegate)<MobileRTCCustomizedUIMeetingDelegate>
@end

Then, in your StartJoinMeetingPresenter.m file, implement these two functions.

@implementation SDKStartJoinMeetingPresenter (CustomizedUIMeetingDelegate)
- (void)onInitMeetingView
{
  // Create & Present View Controller
  NSLog(@"onInitMeetingView....");
  CustomMeetingViewController *vc = [[CustomMeetingViewController alloc] init];
  self.customMeetingVC = vc;
  [vc release];
  [self.rootVC addChildViewController:self.customMeetingVC];
  [self.rootVC.view addSubview:self.customMeetingVC.view];
  [self.customMeetingVC didMoveToParentViewController:self.rootVC];
  self.customMeetingVC.view.frame = self.rootVC.view.bounds;
  ...
}
- (void)onDestroyMeetingView
{
  // Remove & Dismiss View Controller
  NSLog(@"onDestroyMeetingView....");
  NSLog(@"onDestroyMeetingView....");
  [self.customMeetingVC willMoveToParentViewController:nil];
  [self.customMeetingVC.view removeFromSuperview];
  [self.customMeetingVC removeFromParentViewController];
  self.customMeetingVC = nil;
  ...
}
