Integrate with your app

The code on this page works with either the default UI or the custom UI.

After getting some hands-on experience with our SDK, integrate our Meeting SDK for iOS with your own applications.

Prerequisites

To use the Meeting SDK 7.0.0 and later, you'll need to meet these requirements.

  • Xcode version 26 or later.
  • A physical 64-bit iOS device (iPhone or iPad) with iOS version 15.0 or above. For iOS 26 and Xcode 26 or later, you may need to remove the -ld_classic in other link flags from your project.
  • As of version 5.11.9, the Meeting SDK for iOS does not support 32-bit devices.
  • As of version 6.0.2, the Meeting SDK for iOS follows Apple's requirement to provide privacy manifest and signatures.
  • As of version 6.7.5, the Meeting SDK for iOS does not support x86 architecture for the iOS simulator.

Add framework bundles

Using our iOS SDK requires the following frameworks:

  • MobileRTC.xcframework - Meeting SDK iOS interfaces to support all services related to Zoom meetings, such as initialize SDK, create and join a meeting, in-meeting services, and others.
  • MobileRTCResources.bundle - Zoom UI components.

The Zoom SDK frameworks are located in the lib folder of the downloaded files.

    lib
    ├── MobileRTC.xcframework
    ├── MobileRTCResources.bundle
    ├── MobileRTCScreenShare.xcframework
    └── zoomcml.xcframework

Feature framework bundles

Some features have been separated from the main SDK to make the file size smaller if you do not want to include these features. To include these features, add following additional XCFramework bundles as appropriate:

  • zoomcml.xcframework - Interfaces to support virtual background filter and 3D avatar.
  • MobileRTCScreenShare.xcframework - Interfaces to support the screen share service.

Import them into your project as needed.

Add the iOS library to your project

In your project setting, navigate to the General section.

Since our Meeting SDK for iOS is a dynamic library, import it into Embedded Binaries and Linked Frameworks and Libraries.

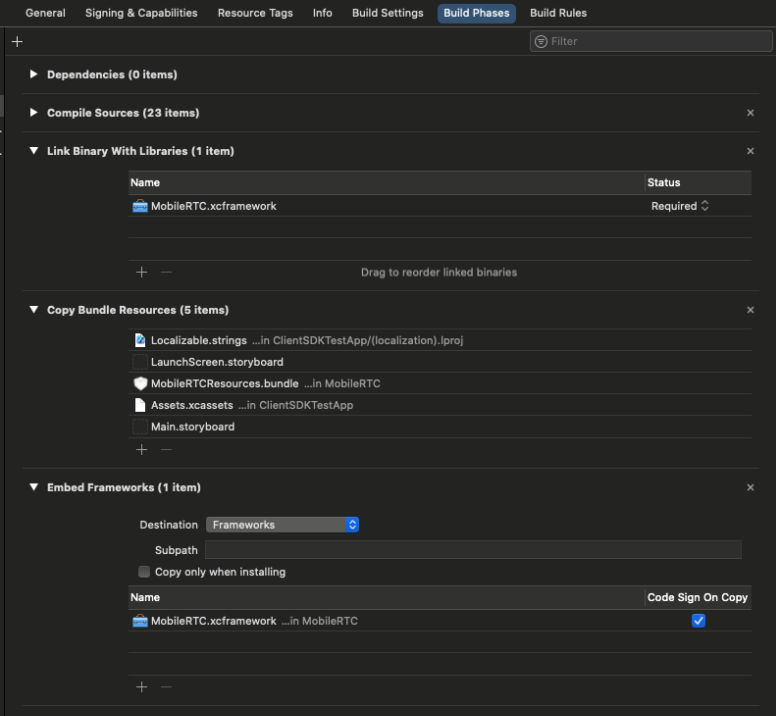

Then, navigate to Build Phases > Copy Bundle Resources, and add MobileRTCResources.bundle.

Add any additional frameworks that you want to use. After importing the framework and bundle, start using Zoom services inside your own applications.

We do not support Bitcode. Our SDK library is heavily optimized, and we will not be able to provide Bitcode builds. Set Enable Bitcode in Build Settings > Build Options to No when you are trying to build your application.

Set project build setting

Set ALWAYS_EMBED_SWIFT_STANDARD_LIBRARIES to YES.

Required permissions

Our video conferencing requires the Microphone, Camera, Bluetooth, and Photo Library permissions.

Specify these permissions in your project settings Info.plist.

  1. Open your Info.plist, right click at the empty space, and select Add Row.
  2. A new row will be added, for key, select Privacy - Camera Usage Description, input any descriptions for your permission request in the value column.
  3. Add other rows for Microphone, Bluetooth, and Photo Library.

You can also refer to this XML code, also from info.plist.

<key>NSBluetoothPeripheralUsageDescription</key>
<string>We will use your Bluetooth to access your Bluetooth headphones.</string>
<key>NSCameraUsageDescription</key>
<string>For people to see you during meetings, we need access to your camera.</string>
<key>NSMicrophoneUsageDescription</key>
<string>For people to hear you during meetings, we need access to your microphone.</string>
<key>NSPhotoLibraryUsageDescription</key>
<string>For people to share, we need access to your photos</string>

Add AppDelegate calls in the file

In the project's AppDelegate file - either AppDelegate.swift or AppDelegate.m - add the SDK-related delegate calls to ensure that the SDK responds to the correct app state.

- (void)applicationWillResignActive:(UIApplication *)application
{
    // Sent when the application is about to move from active to inactive state. This can occur for certain types of temporary interruptions such as an incoming phone call or SMS message or when the user quits the application and the app transitions to the background state.
    // Use this method to pause ongoing tasks, disable timers, and throttle down OpenGL ES frame rates. Games should use this method to pause the game.
    [[MobileRTC sharedRTC] appWillResignActive];
}
- (void)applicationDidEnterBackground:(UIApplication *)application
{
    // Use this method to release shared resources, save user data, invalidate timers, and store enough application state information to restore your app to its current state in case it is terminated later.
    // If your app supports background execution, this method is called instead of applicationWillTerminate: when the user quits.
    [[MobileRTC sharedRTC] appDidEnterBackground];
}
- (void)applicationDidBecomeActive:(UIApplication *)application
{
    // Restart any tasks that were paused or not yet started while the app was inactive. If the app was previously in the background, optionally refresh the user interface.
    [[MobileRTC sharedRTC] appDidBecomeActive];
}
- (void)applicationWillTerminate:(UIApplication *)application
{
    // Called when the app is about to terminate. Save data if appropriate. Also see applicationDidEnterBackground:.
    [[MobileRTC sharedRTC] appWillTerminate];
}

  func applicationWillTerminate(_ application: UIApplication) {
      // Notify MobileRTC of appWillTerminate call.
      MobileRTC.shared().appWillTerminate()
  }
  func applicationWillResignActive(_ application: UIApplication) {
      // Notify MobileRTC of appWillResignActive call.
      MobileRTC.shared().appWillResignActive()
  }
  func applicationDidBecomeActive(_ application: UIApplication) {
      // Notify MobileRTC of appDidBecomeActive call.
      MobileRTC.shared().appDidBecomeActive()
  }
  func applicationDidEnterBackground(_ application: UIApplication) {
      // Notify MobileRTC of appDidEnterBackgroud call.
      MobileRTC.shared().appDidEnterBackgroud()
  }

Deploy your app

If you are ready to put your application that integrated our Meeting SDK in production, here are some suggested configurations:

  1. Set Targeted Device Family to iPhone/iPad.
  2. Set iOS Deployment Target to iOS 15.0 or later.
  3. Add -ObjC in Other Linker Flags of the Build settings.
