Meeting SDK for Windows' C# wrapper

See some troubleshooting tips for the demo app, and learn how to add an interface to the C# wrapper.

The C# wrapper is provided as a reference, and is not actively supported by Zoom.

Learn to download the SDK with the C# wrapper and run the included demo app.

Troubleshooting

If you come across any issues running the demo app, check through these tips.

.NET Framework

If you're using a newer version of Visual Studio, the automatic upgrade wizard might change some configuration settings.

  • Make sure that the Target framework is identical in both the zoom_sdk_dontnet_wrap and zoom_sdk_demo projects.
  • When you right-click on either of these projects in Solution Explorer > Properties, the Application Tab should show you the Target Framework, such as .NET Framework x.x.x. For example, if the zoom_sdk_dontnet_wrap project targets .NET Framework 4.7.2, change the target framework for zoom_sdk_demo to .NET Framework 4.7.2 as well.

Visual Studio target framework screenshot

Build configuration

  • If you are running the x64 version of the C# wrapper, set the Configuration to Release and Platform to target x64.
  • If you are running the x86 version of the C# wrapper, set the Configuration to Release and Platform to target x86.

Targeting Any CPU for Platform can be ambiguous. Explicitly set the Platform target.

  • Right-click on your Solution, such as Solution or zoom_sdk_c_sharp_wrap, and choose Configuration Manager.

  • In Configuration Manager, add x86 or x64 as the target platform if they don't already exist.

    Visual Studio platform screenshot

Add a new interface

Since the C# wrapper is a community project, it may not include all interfaces available in the Windows SDK. However, as long as an interface is available in the Windows SDK, developers may configure the C# wrapper and make any interfaces available in the C# wrapper.

We'll use AskAttendeeToStartVideo as an example.

If your goal is to recompile the C# wrapper without adding new interfaces, only follow steps 1-3.

  1. Download the latest C# wrapper from the App Marketplace.

  2. In Visual Studio, go to the zoom_sdk_c_sharp_wrap folder and open the solution file zoom_sdk_c_sharp_wrap.sln.

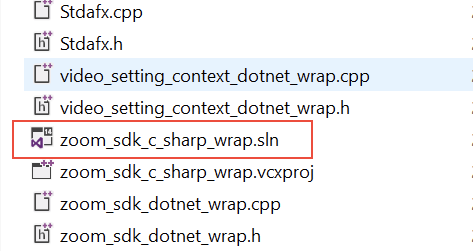

    Solution file shown in list of files

  3. Once the project is opened, you'll see the project zoom_sdk_dotnet_wrap, which is the C# wrapper we'll be modifying.

    Solution explorer showing zoom_sdk_dotnet_wrap

    If your goal is just to recompile the wrapper, rebuild the solution now.

  4. To add AskAttendeeToStartVideo, go to the IMeetingVideoControllerDotNetWrap class and add the new AskAttendeeToStartVideo interface.

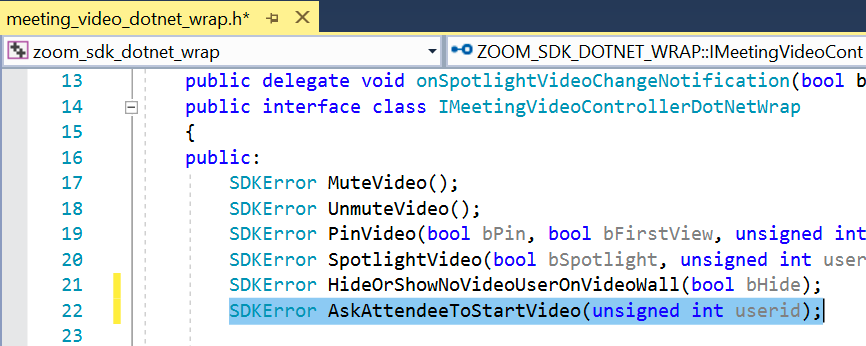

    AskAttendeeToStartVideo interface highlighted in code

  5. Add the same interface in the private ref class in meeting_video_dotnet_wrap.h.

  6. Go to meeting_video_dotnet_wrap.cpp and add the AskAttendeeToStartVideo function.

    Screenshot of AskAttendeeToStartVideo function code

  7. Rebuild the C# wrapper project. Once rebuilt, use this interface in your project.

Repeat the same steps for all other interfaces that you want to add.
